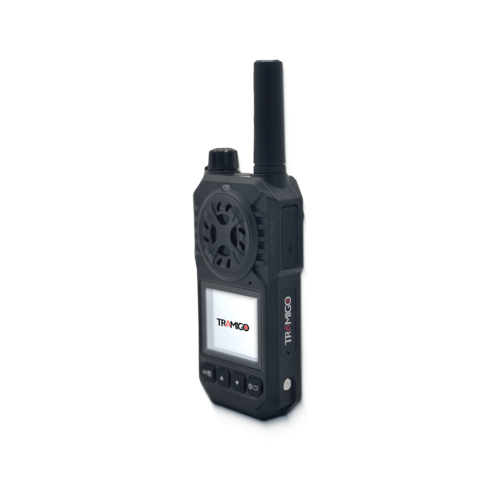

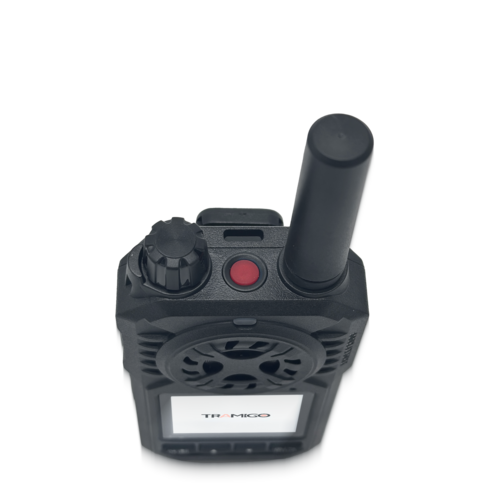

Tramigo MCPTT-1 PTT Handset
ALL-IN-ONE SOLUTION FOR PUSH-TO-TALK COMMUNICATION
Built to excel in any environment, the Tramigo MCPTT-1-XC
ensures seamless communication and personnel safety.
This affordable, all-in-one solution combines durable hardware,
advanced software, and reliable connectivity, making it perfect for
both everyday use and critical situations.
Tramigo MCPTT solution with embedded eSIM and
regional coverage, works in 2G, 3G, 4G and LTE-M
networks to ensure the most safe and reliable
connection. The low-latency software ensures voice crystal clear quality.
Tramigo multi-network connectivity ensures that your PTT device will always connect to the best network making the coverage better and stronger.
Connectivity License
Price includes 1st year Tramigo MCPTT-1-XC software and connectivity license. Unlimited multi-
network connectivity covering UK (O2, EE, and Vodafone) and all EU with no roaming fee and unlimited use. Unlimited communication in a group size of 50. End-user can have unlimited number of groups and unlimited 1-1 calls.
AVAILABLE SOFTWARE OPTIONS
- Web-Admin
User friendly Web-Admin interface allows creating, adding and removing users and groups. Users and groups can be also created by uploading an excel file. All admin-functions are available over SOAP-protocol which allows to integrate PTT-management to company CRM and other business services.
- Control Center
The Windows PC MCPTT Control Center gives the possibility to monitor, track devices location, and communicate directly to devices. Audio in/out and text-input can be integrated using standard devices and connections, including wired and Bluetooth. Windows Dispatcher support 1-8 monitors allowing flexible scalability from entry-level single-display system to 8-screen video-wall.
- Mobile App Dispatcher
The Mobile App Dispatcher is compatible with Android and designed to allow communication with small groups and control center and track devices location as well. Mobile app dispatcher also allows you to request for a call back from the devices.
KEY FEATURES
- Secure, encrypted and instant.
- Connectivity data included.
- Designed for multiple users, both one-to-one, or one-to-group calls.
- Instant one-click call & conference.
- Emergency functionality - SOS button.
- Embedded GPS module enables tracking and geofencing.
Tramigo MCPTT-1 technical specifications
- Hardware specifications
- Dimension 1085823 mm
- Waterproof IP68
- OS Android 8.0 (Go)
- Network GSM: B8
- WCDMA: B8
- LTE: FDD B1/3/5/8
- TDD 38/40/41
- Built-in memory 1GB RAM + 8GB ROM
- Display size 128*160 mm
- WiFi Support 2.4GHz WiFi , IEEE 802.11a/b/g/n
- Bluetooth BLE 4.0, 3.0 + HS, 2.1 + EDR
- Locating antenna Support, built-in GNSS antenna
- GPS/location GPS / AGPS
- Charging data interface Type-C(USB 2.0)
- Earphone interface 3.5 mm standard
- Dock charger Support
- Speaker 36 mm, 1.5W
- Microphone Single Mic
- Battery capacity 3500 mAh, replaceble
- Battery charging Charger: 5V-1A
STANDARD ACCESSORIES
- Battery
- Charger with Type-C cable
- Belt clip
OPTIONAL ACCESSORIES
- Earphone
- Dock station
