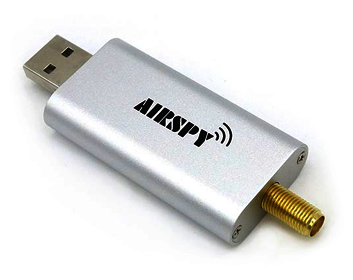

AIRSPY MINI HIGH PERFORMANCE SDR RECEIVER
Airspy Mini builds on top of the successful Airspy R2 architecture to offer an affordable high performance alternative to RTL-SDR and other TV dongles for the VHF and UHF bands.The coverage can be extended to the HF bands via the Spyverter up-converter companion.This new addition to the Airspy family is 100% compatible with all the existing software including the de facto scanning standard SDR#, but also a number of popular software defined radio applications such as SDR-Radio, HDSDR, GQRX and GNU Radio.
Typical Applications
Portable VHF/UHF/SHF Radio Monitoring
Real Time Spectrum Analyzer
ADS-B, ATC receiver
Radio Astronomy
Satellite IF
Telemetry Receiver
Wide Band Scanner
Education
Ham Radio, etc.
Technical specifications
Continuous 24 – 1700 MHz native RX range, down to DC with the SpyVerter option
3.5 dB NF between 42 and 1002 MHz
Maximum RF input of +10 dBm
Tracking RF filters
35dBm IIP3 RF front end
12bit ADC @ 20 MSPS (10.4 ENOB, 70dB SNR, 95dB SFDR)
10, 6 and 3 MSPS IQ output – Optimized for portable and tablets
Up to 6 MHz panoramic spectrum view
0.5 ppm high precision, low phase noise clock
4.5v software switchable Bias-Tee 100% Compatible with SpyVerter and High Performance LNA
IQ or Real, 16bit fixed or 32bit float output streams
No IQ imbalance, DC offset or 1/F noise at the center of the spectrum that plagues all the other SDRs
Best software support of all existing SDRs
No drivers required! 100% Plug-and-play on Windows Vista, Seven, 8, 8.1 and 10, all Linux Flavors, Mac and Android
Compatible with Raspberry Pi, Odroid, Pine64 and UP boards
Operating temperature: -10°C to 40°C
Minimum hardware requirements
Core 2 Duo @ 2 GHz CPU or equivalent
2GB of RAM (to run your own OS, airspy barely needs 1MB of memory)
High speed USB 2.0 controller
